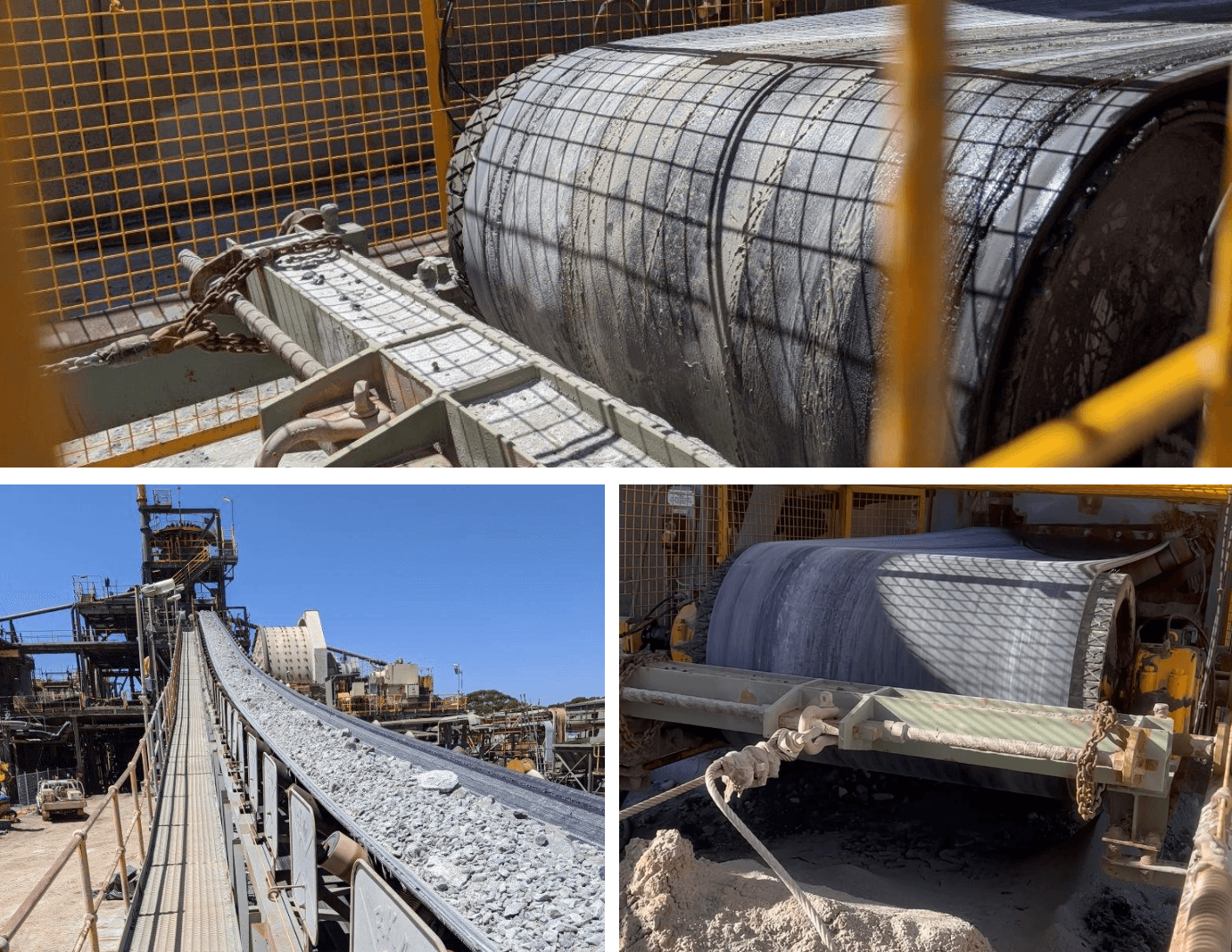

There are a wide variety of root causes for conveyor belt movement, such as conveyor design, operating parameters, conditions, and belt type. It’s often a combination of these causes that influence belt movement. Where belt movement cannot be engineered out, belt tracking devices including belt positioners, and trainers offer of a useful counter measure that can be installed relatively quickly.
CPS conveyor idler frames use friction and tension to correct alignment issues, to avoid forces that can damage your conveyor belt. It’s imperative belt tracking devices are carefully selected to ensure secondary effects are not caused that could negatively impact the conveyor belt as well as the operation of the conveyor.
As specialists in the engineering of conveyor components, CPS can provide conveyor expertise on the right belt tracking solution or your options. We offer a range of standard, premium, and bespoke conveyor idler frames options with all equipment manufactured locally at our Australian workshop facilities.
Explore the CPS range of conveyor idler frames below.

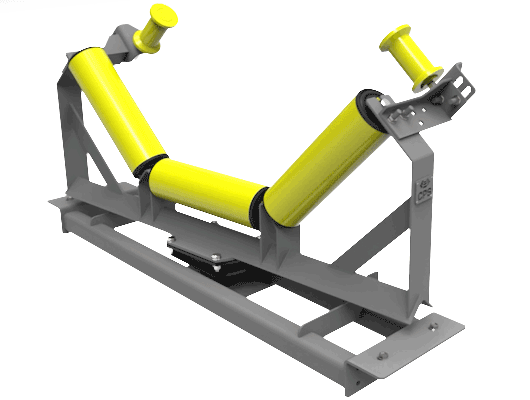

CPS trough/carry tracking frames utilise a heavy-duty dual bearing central pivot and can be supplied to retrofit standard frames, or designed and supplied specific to your application. The pivot is ‘sealed-for-life’, including integrated triple labyrinth and contact sealing to prevent ingress.
Carry Trackers
Low Profile Carry Tracker
Custom Carry Tracker
Custom Carry Tracker
For non-standard applications, CPS can specially design and manufacture custom carry trackers; these may have unique mounting arrangements, clearance requirements, loading conditions, etc.
For heavily loaded conveyors, heavy-duty carry trackers can be designed and manufactured by CPS with more robust pivots, guide rollers, mounting brackets and base members. These components are sized using the specific conveyor data to ensure that the provided tracking frames are effective and built to last.
CPS return tracking frames utilise a heavy-duty dual bearing central pivot and can be supplied to retrofit standard frames, or designed and supplied specific to your application. The pivot is ‘sealed-for-life’, including integrated triple labyrinth and contact sealing to prevent ingress.
Flat Return Tracker
Vee Return Trackers
Custom Return Trackers
Custom Return Trackers
For non-standard applications CPS, can specially design and manufacture custom return trackers; these may have unique mounting arrangements, clearance requirements, loading conditions, etc.
For heavily loaded frames, heavy-duty return trackers can be designed and manufactured by CPS with more robust pivots, guide rollers, mounting brackets and base members. These return frames may be in areas of high belt tension, large idler spacing, adjacent to pulleys, etc. The components are sized using the specific conveyor data to ensure that the provided frames are effective and built to last.

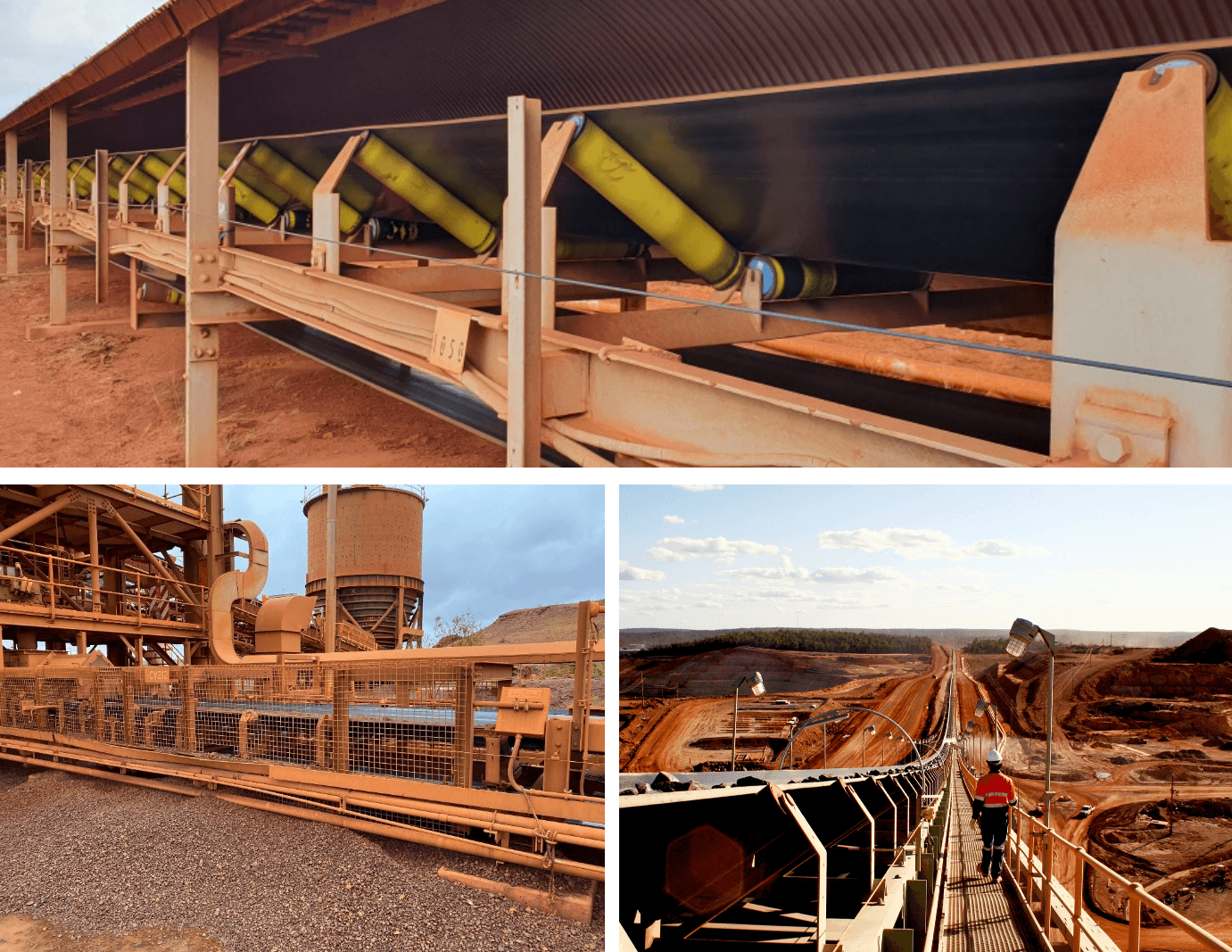

Mis-tracking of the belt is usually the result of a few common factors including off centre feed or misaligned pulleys, however sometimes it can be hard to identify the root cause. The experts at CPS are available to assess belt tracking issues and provide the optimal tracking solution through site auditing.
As part of the Fenner Conveyors Group in Australia, CPS is able to highly engineer conveyor idler frames to enable harmonious operation with your selected conveyor belt.
The combined technical expertise across Fenner Conveyors and CPS provide for belt tracking solutions which are backed by the most advanced engineering and R&D in the industry.
