Idlers

CPS is a proud leader in innovation and technology within the conveyor industry. CPS design, engineer and fabricate a large variety of idler configurations according to industry standards.

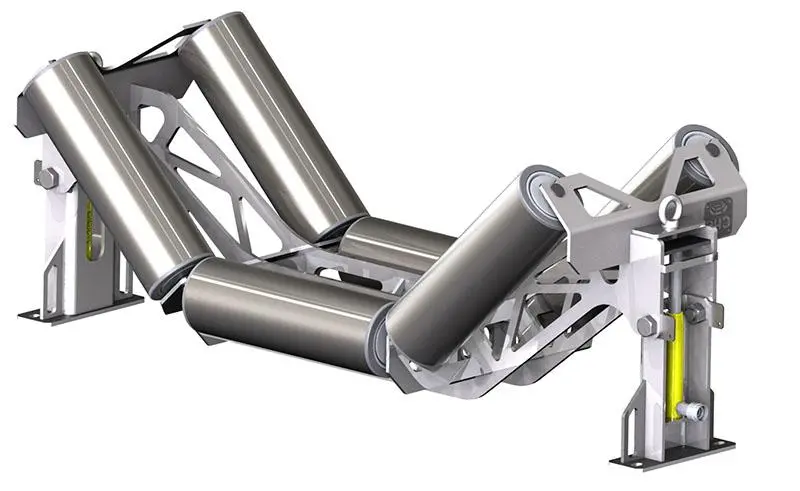

Dual Jacking Impact Applications

Dual Jacking Impact Applications

Dual Jacking Impact idlers are used where current frames are not sufficiently robust, with rigidity issues, fatigue fracturing, and roller slot elongation due to plastic deformation from repeated impacts and rattling against the hard roller shaft.

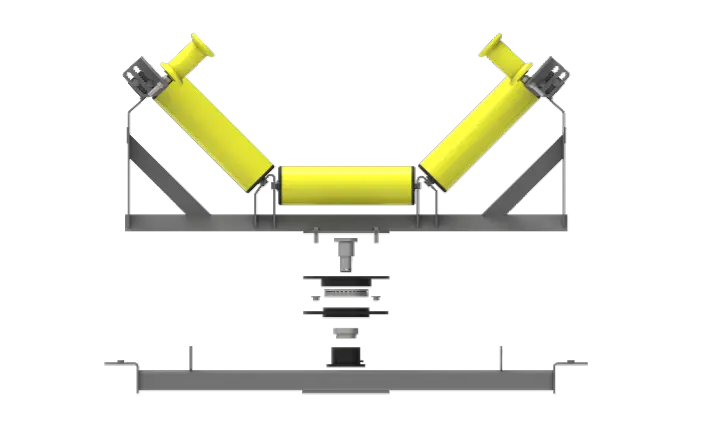

Training Frames

Training Frames

CPS Training Frames are designed and equipped with CPS dual bearing pivot for smooth, accurate and reliable belt tracking functions that are built to last. These frames can be manufactured in all typical frame configurations as well as specifically designed for all applications.

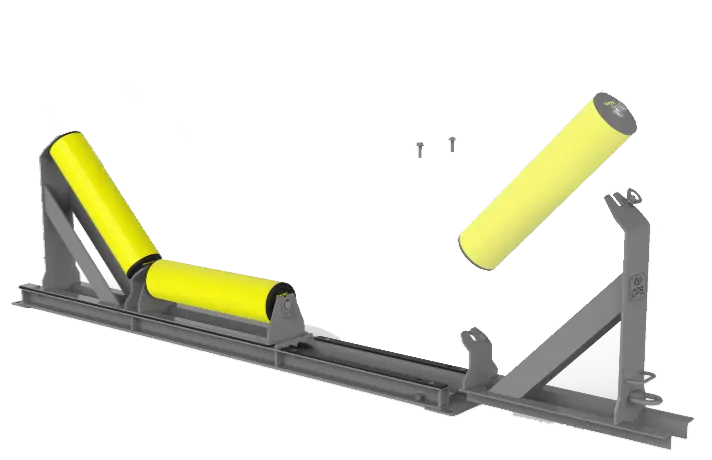

Retractable Idler Frames

Retractable Idler Frames

Designed and engineered according to industry standards, the CPS Retractable Idler Frames are a great solution for impact zones that require frequent roller change-outs. It enables easy access to rollers without the need to raise the belt. Roller change-outs can be made easier with the CPS retractable idler frames, increasing maintenance efficiencies.

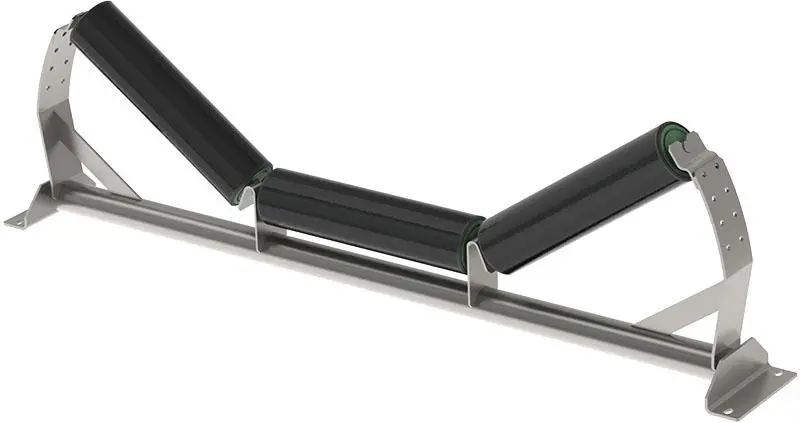

Transition

Transition

Transition idlers are adjustable idlers, used in the belt transition zone, which assist the conveyor belt to change from a flat profile across pulleys to a troughed angle. Transition idlers can be custom made for any belt width, with either slotted or drilled hole adjustments.

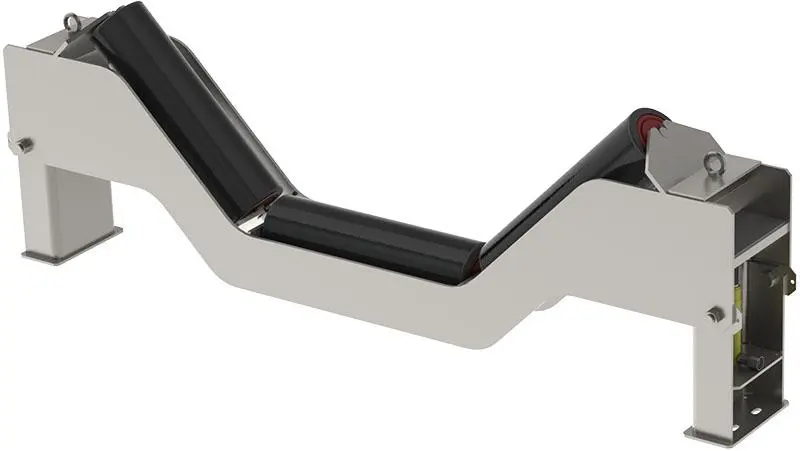

Jacking Carry

Jacking Carry

Jacking carry impact idlers are a heavy-duty, high performance solution utilised in conveyor impact zones under the skirt. CPS pioneered single jacking impact idlers for extreme-duty applications. Jacking idlers can designed in multiple configurations including single and dual arrangements for any belt.

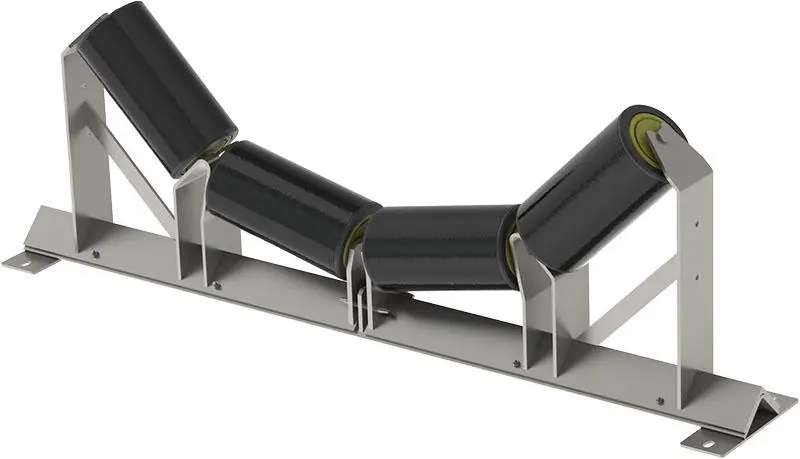

Retractable Carry

Retractable Carry

Maintenance-friendly Retractable Carry idlers provide HSE safety benefits by allowing roller change outs from walkways. Retractable Carry idlers can be custom made for any belt width, in multiple roll configurations to suit your project requirements.

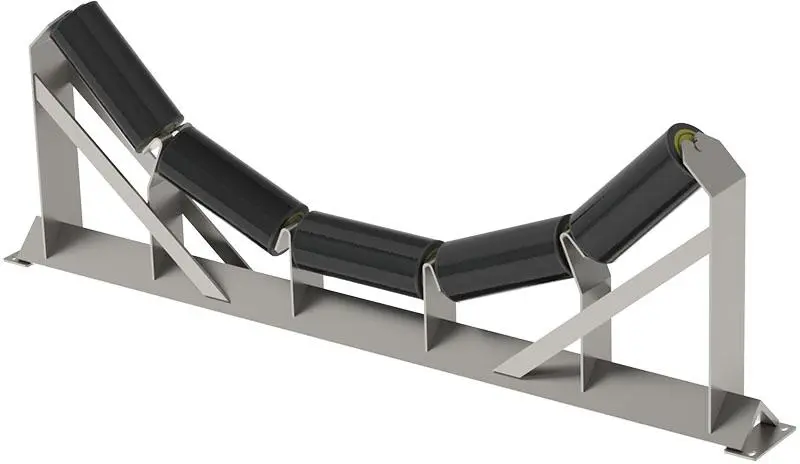

5 Roll Carry

5 Roll Carry

As they distribute conveyor loads across more bearings, 5 Roll Carry idlers allow for lighter weight rollers, providing significant HSE safety benefits. 5 Roll Carry idlers can be custom made to any width to suit your project requirements.

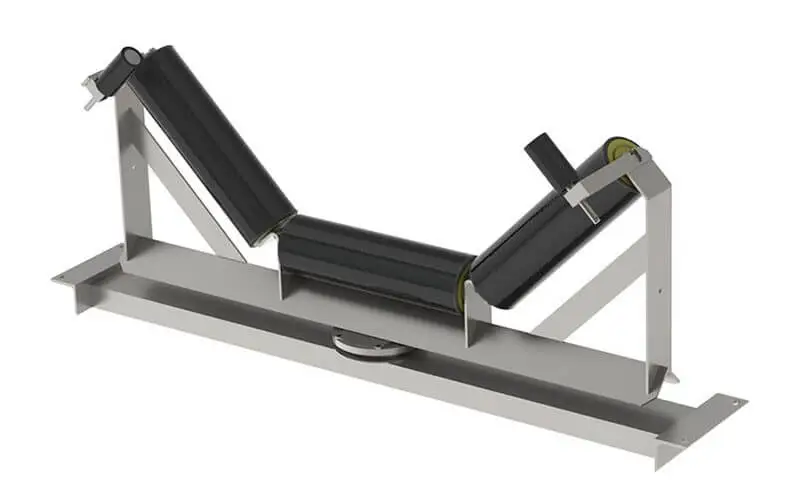

Carry Training

Carry Training

Carry Training idlers provide a method for actively realigning the belt during operation, resulting in better overall performance and reduced downtime. CPS’ custom designed pivot assembly is fully serviceable and replaceable. Carry Training idlers can be custom made for any belt width to your project requirements.

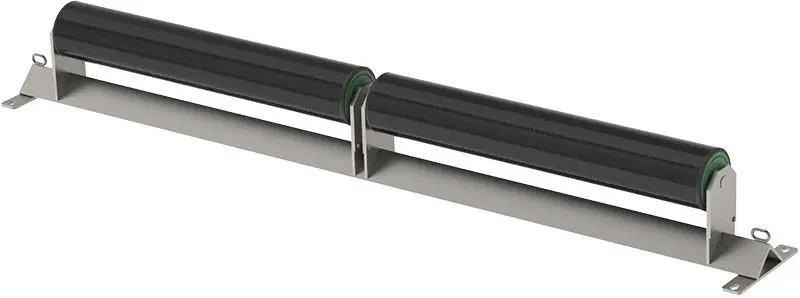

Flat Carry

Flat Carry

Used in take up areas, the Flat Carry idler supports the return side of the belt where no troughing angle is necessary. Like all CPS idlers, Flat Carry idlers can be custom made to suit your project requirements.

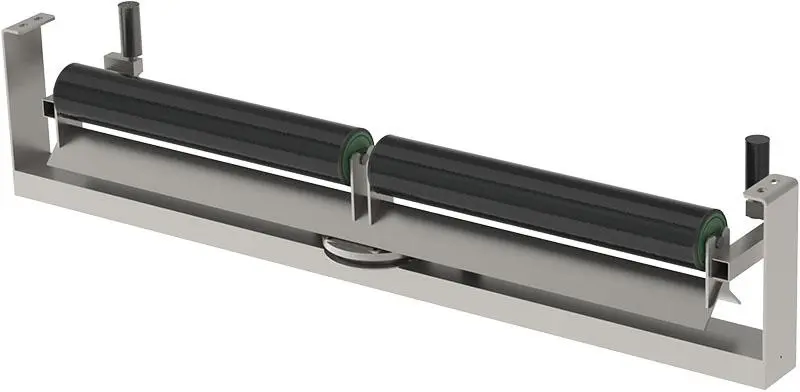

Flat Return Training

Flat Return Training

Flat Return Training idlers provide a similar dynamic alignment method for the carry side of the belt as the Carry Training idler provides to the return side. These positive action training frames can be custom made for any belt width to your project requirements. CPS’ custom designed pivot assembly is fully serviceable and replaceable.

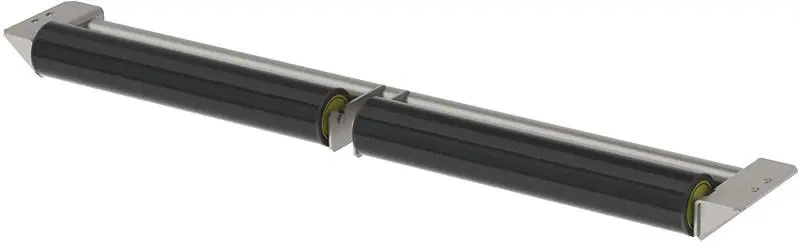

Flat Return

Flat Return

Providing support for the return length of the belt, Flat Return idlers support the belt in flat areas near pulleys. CPS can custom manufacture these idlers using quality materials right here in Australia to suit your project requirements. Flat return idlers can be supplied with a low-maintenance cleaning solution complete with the CPS PU Disc Rollers.

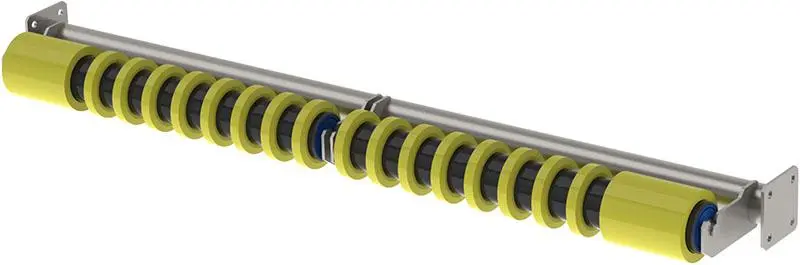

Flat Disc Return

Flat Disc Return

Flat Disc Return idlers are a low-maintenance cleaning solution complete with the CPS PU Disc Roller. Flat Disc Return idlers can be custom made for any belt width to your project requirements.

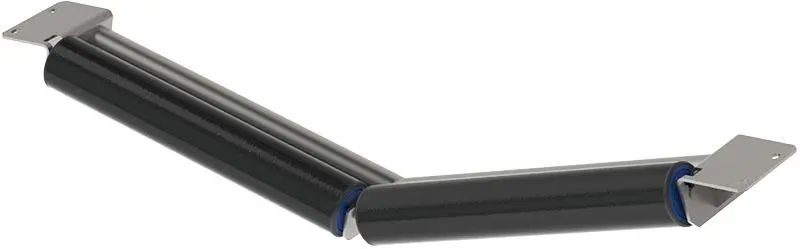

Vee Return

Vee Return

The Vee Return idler provides best value to applications where a vee orientation is required on the return side to assist with tracking and ensure peak performance. Vee Return idlers can be custom made for any belt width to your project requirements. Vee return idlers can be supplied with a low-maintenance cleaning solution complete with the CPS PU Disc Rollers.

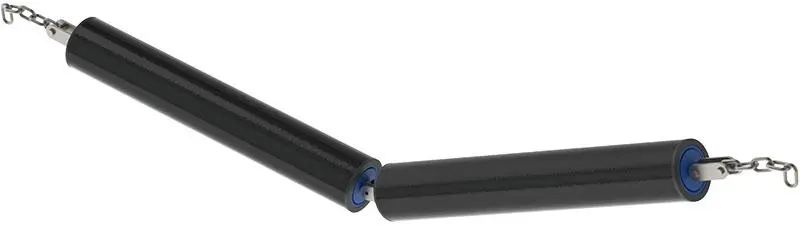

Suspended Return

Suspended Return

Chain return style Suspended Return idlers are an easy removal option primarily used in underground coal. When set up correctly, similar to Vee Return Idlers, Suspended Return idlers can assist with centralising the belt. Suspended Return idlers can be custom made for any belt width to your project requirements.
